Products Home>> Products>>Product Detail

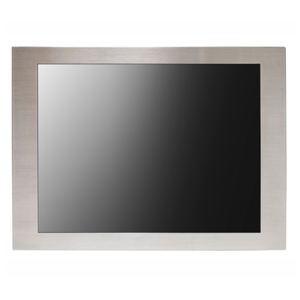

PTM-Series <10.4"~27" TFT LCD>
* PTM-100: 10.4", 1024x768, 275x218.5x64.12 mm
* PTM-120: 12.1", 1024x768, 326x252x58.1 mm
* PTM-150: 15", 1024x768, 380x280x58.1 mm
* PTM-156: 15.6", 1366x768, 413x268x58 mm
* PTM-170: 17", 1280x1024, 416x327x64.1mm
* PTM-190: 19", 1280x1024, 466x357x66.1 mm
* PTM-215: 21.5", 1920x1080, 553.4x344.36x56.1 mm

360° surround chart Contact US

  • Specification
  • Feature & Photo
  • Application
Type Monitor
Product Name PTM-Series <10.4"~27" TFT LCD>
Display Size 10.4" ~ 27"
Brightness 250 cm/m2 ~ 500 cd/m2
Contrast 500:1 / 1000:1 / 2500:1
Signal Connector HDMI or VGA
Touch Panel Taiwan 5W Resistive or P-CAP
Speaker Built-in Speakers
Power Consumption 23W ~ 35W
Case Color #304 Stainless front bezel, metal back cover
Dimension Based on LCD size
Optional Device DC
HDMI or VGA
DVI
USB
Audio
Remark * Operating Temperature: 0°C~50°C (32°F~122°F)
* Storage Temperature: -20°C~60°C (-4°F~140°F)
* Relative Humidity: 10%~95% @40°C (non-condensing)

Features
Application
